Grade: B1 |
B1: 2299.00 EA |
Physical: Some light scratches - Excellent Condition
Electrical: Meets or exceeds original specs, all functions operate
Comments:With remote & RAA1 |
|
|
|
Grade: D1 |
D1: 2299.00 EA |
Physical: Some dents or oxidation - Fair Condition
Electrical: Meets or exceeds original specs, all functions operate
Comments:Glass Broken. |
|
|
|
Grade: C1 |
C1: 2199.00 EA |
Physical: Some scratches or nicks, light oxidation - Good Condition
Electrical: Meets or exceeds original specs, all functions operate
Comments:with box, manual & remote. |
|
|

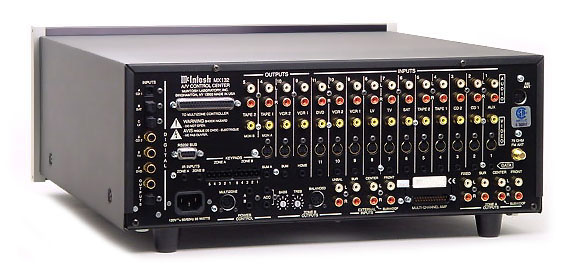

File Photo for Representation of item. May not be the actual item offered for sale.
|
Now you can take advantage of traditional McIntosh standars of excellence
in the MX132 A/V Tuner Control Center as the heart of your home theater system. The MX132
provides superior six channel reproduction, Dolby Digital and DTS decoding combined
with complete audio and video switching. The McIntosh MX132 sets new standards for
accuracy in a home theater system
|
Performance Features
- 24 Bit DSP Processing and Conversion
- Digital Audio Input Switching
- On Screen Displays
- Audio/Video Inputs
- Automatic Mode Switching
- Re-Assignable Input Selection
- External IR Sensors
- LED Channel Status Indicators
- Pure Stereo Outputs
- Adjustable Channel Level
- Adjustable Time Delay
- Precision Tracking Volume Control
- Digitally Controlled Tone Control
- Composite/S Video Switching
- External Six Channel Inputs
|
- Zone Expansion
- Auto Memory of Mode Settings
- Multifunction Fluorescent Display
- THX® Signal Processing
- Late Night Dynamic Audio Compression
- Automatic Input Level Control
- Full Remote Control
- Speaker Settings for Bass Management
- DMOS-FET FM RF Amplifier
- FM Stereo Auto Blend Circuitry
- Preset Stations
- External AM RF Amplifier
- Dual Zone
- Listen and Record Circuitry
- Double Shielded Power Transformer
|
 |
|
|
Audio Specifications
Rated Output
All Modes: 2.0VRMS for full bit digital input
Input Impedance
22K ohms
Output Impedance
47 ohms at all outputs
Maximum Output Voltage
9.5 VRMS
Total Harmonic Distortion
0.005% at all outputs
Sensitivity
Analog Input: 400mV for 2.0V output
Signal To Noise Ratio - All Outputs
Greater than 90dB un-weighted
Greater than 100dB A-weighted
Greater than 98db CCIR
Maximum Input Signal
Analog Input: 6Vrms
Voltage Gain
Analog Input to Output: 14dB
Frequency Response
+0, -0.5dB from flat setting
Tone Controls
+12dB, -12dB from flat setting
AM Tuner Specifications
Sensitivity
20uV external Antenna Input
Signal To Noise Ratio
48dB at 30% modulation
58dB ay 100% modulation
Harmonic Distortion
0.5% maximum at 50% modulation
Frequency Response
50Hz to 6kHz NRSC
Adjacent Channel Selectivity
45dB minimum IHF
Image Rejection
65dB minimum from 540 to 1600kHz
|
FM Tuner Specifications
Usable Sensitivity
14dBF which is 1.4uV across 75 ohms
50dB Quieting Sensitivity
Mono: 19dBF which is 2.4uV across 75 ohms
Stereo: 35dBF which is 15uV across 75 ohms
Signal To Noise Ratio
Mono: 75dB
Stereo: 70dB
Frequency Response
Mono: +0, -1dB from 20 to 15,000Hz
Stereo: +0, -1dB from 20 to 15,000Hz
Harmonic Distortion
Mono: 0.3% at 100Hz
0.3% at 1000Hz
0.3% at 10,000Hz
Stereo: 0.45% at 100Hz
0.45% at 1000Hz
0.65% at 10,000Hz
Intermodulation Distortion
Mono: 0.25%
Stereo: 0.45%
Capture Ratio
1.2dB
Alternate Channel Selectivity
75dB
Spurious Response
100dB
Image Response
75dB
RF Intermodulation
65dB
Stereo Separation
45dB at 100Hz
45dB at 1000Hz
35dB at 10,000Hz
SCA Rejection
65dB
| |
Shipping weight: 60 lbs.
