McIntosh MR65B |
|
| FM Stereo Tube Tuner |
Original List Price: 329.00
|
File photo for representation of item. May not be the actual item offered for sale.
|
|
|
|
Grade: S1 |
S1: 2000.00
|
Special Item Call for Details
Electrical: Meets or exceeds original specs, all funtions operate
Comments:Performance Certified by Audio Classics, Ltd. RTM
Call us for availability
|
|
|
|
Grade: B? |
B?: 1199.00
|
Physical: Some light scratches - Excellent Condition
Electrical: Not graded AS IS
Comments:Nice unit.
|
|
|
|
Grade: C? |
C?: 699.00
|
Physical: Some scratches or nicks, light oxidation - Good Condition
Electrical: Not graded AS IS
Comments:Needs lights, alignment, caps.
|
|
|
|
Grade: PARTS |
PARTS: 699.00
|
Comments:No dial glass or end caps.
|
|
|
|
Grade: C5 |
C5: 599.00
|
Physical: Some scratches or nicks, light oxidation - Good Condition
Electrical: Does not meet spec, some functions broken AS IS
Comments:
Call us for availability
|
|
|
|
|

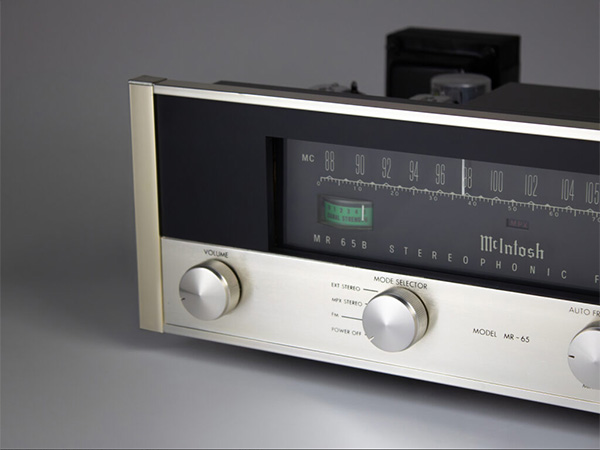

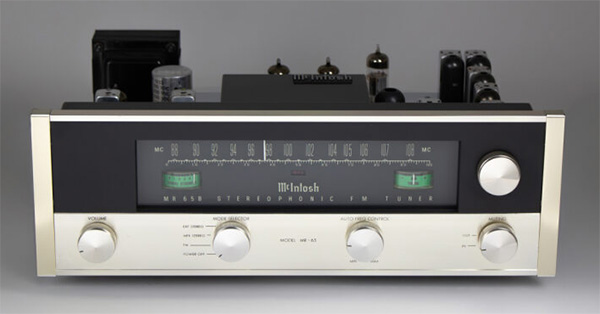

Front Panel: Anodized gold and black aluminum panel. Illuminated dial. Illuminated signal strength meter. MPX indicator light. Illuminated tuning meter. Tuning control. Volume control. Mode selector switch: ext stereo, MPX stereo, FM, power off. Auto frequency control: min to max. Muting switch: in or out. Zero adjustment for signal strength and tuning meters behind end caps.

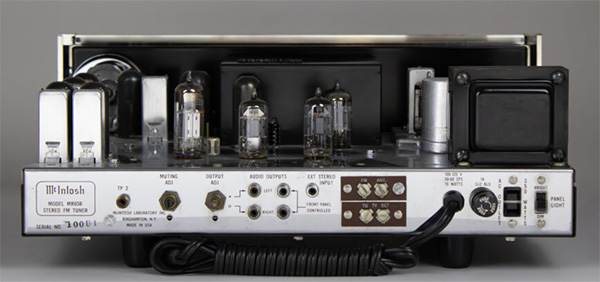

Back Panel: Scope output. Muting adjustment. Output adjustment. Audio outputs: 2.5V fixed and front panel controlled. Ext stereo input. Screw terminals for 300 or 75 ohm FM antenna and to tv set. Power cord. Fuse. Unswitched AC outlet. Panel light switch: bright or dim.
FM Section: Sensitivity 2.5uV. Response 20Hz-20kHz ± 0.5dB. Distortion less than 0.5%. Capture ratio 1.5dB. Image rejection better than 80dB. Three IF stages. Two limiters.

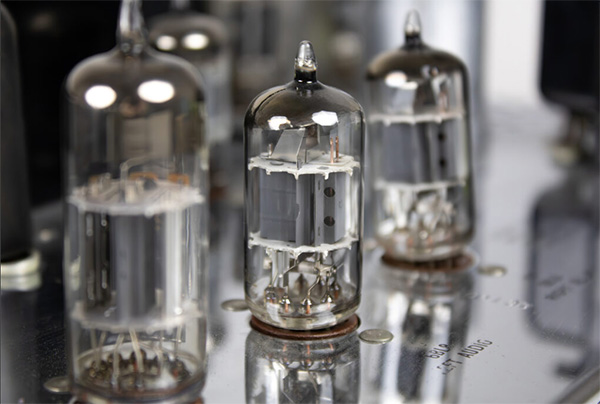

Tubes: 6DS4, 12AT7, (4)6AU6, 6SC6, 6BN8, (2)6BL8, 6BN4, 12AU7, 6U8, 12AU7. Solid state rectifier.
Production, 1,600 units made from June 1962 to 1964. SN: 100U1 to 359U3 and 100V1 to 101V8.
|
Shipping weight: 35 lbs.
Related Categories: Modafferi Modifications
Antennas
|
|
Feedback: I have installed the MR65B on my second system ! I am listening to it right now, it works marvelously, his sonority is probably a little different from that of the previous MR67 I bought last year (I didnt compare them directly) but is still very pleasant, a superb collector, thank-you again for evrything ! E.B., France |
|
Re: MR65B tuner: Absolutely
Excellent. That is one sweet Classic
tuner. Much thanks again for your
honesty on that piece, and every
other piece as well. J.P., MA
P.S. That C22 reissue is just
incredible. So So Quiet.
|
|
|
